Hot-Rolled Steel Sections

Detail

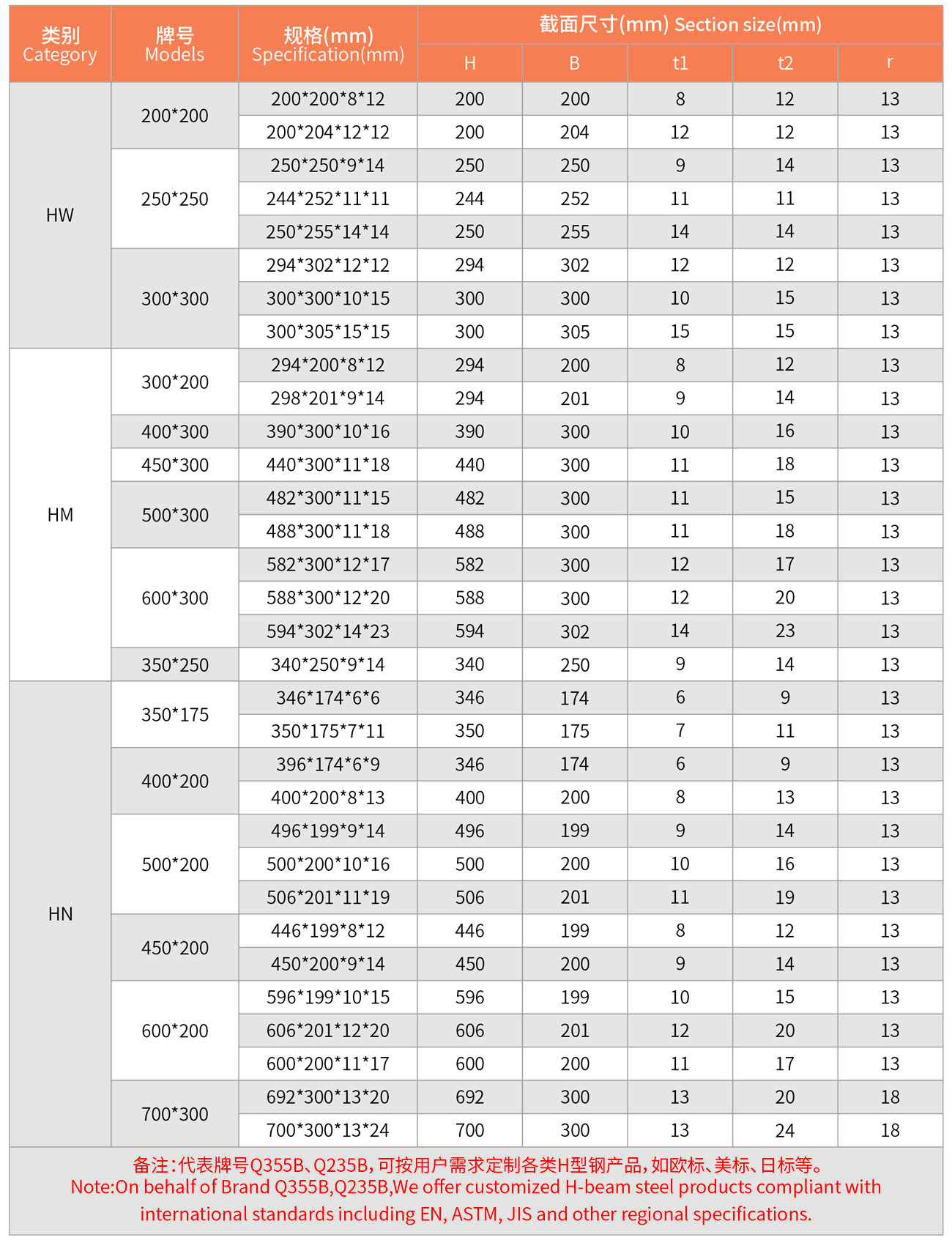

Product Mix:Hot-Rolled H-Beams

Product	Grade	Type	Specification Series		Use	Executive Standard
Hot-Rolled H-Beam of Carbon Structural Steel	Q235B	HW	200×200	200×200×8×12	Structural Steel	GB/T700、GB/T11263
			250×250	250×250×9×14
				250×255×14×14
			300×300	300×300×10×15
				300×305×15×15
		HM	300×200	294×200×8×12
			350×250	340×250×9×14
			400×300	390×300×10×16
			450×300	440×300×11×18
			500×300	482×300×11×15
				488×300×11×18
			600×300	582×300×12×17
				588×300×12×20
				594×302×14×23
		HN	350×175	346×174×6×9
				350×175×7×11
			400×200	396×199×7×11
				400×200×8×3
			450×200	446×199×8×12
				450×200×9×14
			500×200	496×199×9×14
				500×200×10×16
				506×201×11×19
			600×200	596×199×10×15
				600×200×11×17
				606×201×11×19
			650×300	650×300×13×20
			700×300	692×300×13×20
				700×300×13×24
Hot-Rolled H-Beam of Low-Alloy High-Strength Structural Steel	Q355B	HW	200×200	200×200×8×12	Structural Steel	GB/T1591、GB/T11263
			250×250	250×250×9×14
				250×255×14×14
			300×300	300×300×10×15
				300×305×15×15
		HM	300×200	294×200×8×12
			350×250	340×250×9×14
			400×300	390×300×10×16
			450×300	440×300×11×18
			500×300	482×300×11×15
				488×300×11×18
			600×300	582×300×12×17
				588×300×12×20
				594×302×14×23
		HN	350×175	346×174×6×9
				350×175×7×11
			400×200	396×199×7×11
				400×200×8×3
			450×200	446×199×8×12
				450×200×9×14
			500×200	496×199×9×14
				500×200×10×16
				506×201×11×19
			600×200	596×199×10×15
				600×200×11×17
				606×201×11×19
			650×300	650×300×13×20
			700×300	692×300×13×20
				700×300×13×24

Note:H-beam products can be customized according to customer requirements, including EN,ASTM, and JIS standards.

Product Mix：Section Steel

Product		Grade	Specification	Cross-sectional Dimensions (Height × Flange Width × Web Thickness × Average Flange Thickness) mm	Use	Executive Standard
I-beam	Standard I-beam	Q235B, Q355B	10#～63#	e.g.：20#a：200×100×7.0×11.4、 32#c：320×134×13.5×15.0	Building structures, bridges, machinery Bases, vehicle manufacturing	GB/T 706, GB/T 700 (Q235B), GB/T 1591 (Q355B)
I-beam	Light I-beam	Q235B, Q355B	Q10～Q32	e.g.：Q20：200×100×5.2×8.4、 Q32：320×155×7.0×10.0	Lightweight steel structures, temporary Shoring, and Secondary components	GB/T 706 (Light Series)
Channel Steel	Standard Channel	Q235B、Q355B	5#～40#	e.g.：10#：100×48×5.3×8.5、 28#a：280×82×7.5×12.5	Building frames, mechanical structures, vehicle chassis, shoring engineering	GB/T 706
Channel Steel	Light Channel	Q235B、Q355B	Q5～Q40	e.g.：Q10：100×46×4.5×7.0、 Q32：320×88×6.5×11.0	Lightweight enclosure Systems, Brackets & Supports, Door and Window Frames, and Architectural Decoration.	GB/T 707

Product		Grade	Specification	Cross-sectional Dimensions (Leg Width × Leg Width × Thickness) mm	Use	Executive Standard
Angle Steel	Equal-leg Angle	Q235B、Q355B	20×20×3～200×200×24	e.g.：∠50×50×5、∠125×125×12	Bridges, towers Structures, brackets, mechanical components, steel structure connections	GB/T 706
Angle Steel	Unequal-leg Angle	Q235B、Q355B	25×16×3～200×125×18	e.g.：∠63×40×6、∠160×100×14	Special structural supports, machinery bases, Marine components	GB/T 706

Product		Grade	Specification	Cross-sectional Dimensions / Unit Weight	Use	Executive Standard
Rail	Railway Rail	U71Mn、U75V	38kg/m、43kg/m、50kg/m、60kg/m、75kg/m	e.g.：60kg/m：176mm rail height、 75kg/m：192mm rail height	Mainline Railways, Subway Systems, and Light Rail Transit (LRT).	GB/T 2585 TB/T 2344
	Crane Rail	U71Mn	QU70、QU80、QU100、QU120	e.g.：QU100：100mm rail head width	Crane Rails and Factory Tracks.	GB/T 3426
	Light Rail	55Q、50Q	8kg/m、15kg/m、22kg/m、30kg/m	e.g.：22kg/m：65.5mm rail height	Mining Operations, Internal Industrial Lines, temporary tracks	GB/T 11264
	Trolley Rail (For Cranes)	U71Mn	24kg/m、38kg/m、43kg/m	e.g.：43kg/m：140mm rail height	Gantry Rails and overhead crane tracks	YB/T 5055

Note: We can provide various section steel products according to other global regional standards, such as European, American, Japanese standards, etc.
